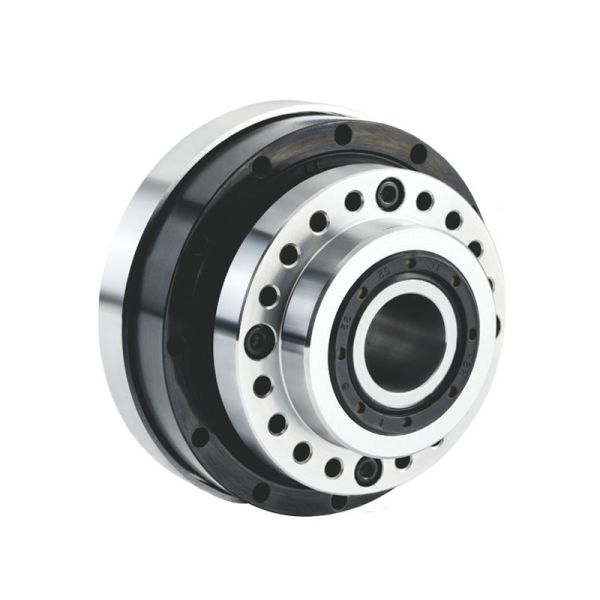

ZLSH20-H Series High Precision Harmonic Drive Gearbox Low Noise Harmonic Drive Reducer

PRMCAS -Automate in A Better Way-

Precise and Reliable Motion Control Automation Solutions

More than 15-years industrial Motion Control Experiences
ZLSH20-H RATIO 50/100/120:1 High Precision Harmonic Gearbox For Robotics And Various Industrial Automation Applications

Harmonic reducers, or harmonic gearboxes are mainly composed of four basic components: wave generator, flexible gear, flexible bearing, and rigid gear. Harmonic transmission reducer is a kind of flexible bearing with a wave generator to produce controllable elastic deformation of the flexible gear and it transforms the force by meshing with rigid teeth.

Products Features

High precision transmission: Harmonic reducer can provide high -precision transmission and location control. It is suitable for various NC machine tools, processing centers and other equipment, which can achieve precise motion control and improve processing accuracy.

High torque output: Harmonic reducer has high torque density, which can provide stable and reliable torque output during the processing of machine tools to ensure the stability and accuracy of the processing process.

High efficiency transmission: The harmonic reducer uses the principle of flexible gear transmission. It has high transmission efficiency, can reduce energy loss, and improve the energy utilization rate of machine tool equipment.

Compact structural: Harmonic reducer has a compact structural design, which can achieve efficient transmission in a limited space and save the installation space of machine tool equipment.

High speed stability: Harmonious reducer can maintain high stability and stability when running at high speed, and it is suitable for strict occasions such as high -speed cutting and high -speed processing.

Applications

Harmony reducer is a flexible gear transmission device. Because of the advantages of small size, light weight, and large bearing capacity, it is widely used in various automation fields.

Aerospace. Harmonic reducer plays an important role in the field of aerospace and is used to meet the requirements of high precision and reliability.

Energy and navigation. Equipment in these areas often requires a large amount of force and torque, and harmonic decelerations are suitable for these applications due to their high carrying capacity.

Industrial robot and robotic arm. Harmony reducer improves exercise accuracy and control in these fields, especially in the servo system that requires high precision and high dynamic performance.

Medical and scientific instruments. These areas have strict requirements on the accuracy and reliability of equipment, and harmonic reducer can provide stable and accurate motion control.

Semiconductor and electronic equipment manufacturing. These areas have high requirements for the accuracy and micro-operation of the equipment, and the harmonic reducer can provide high transmission accuracy and delicate control.

Petrochemical, textile, agricultural machinery and other fields. Equipment in these areas usually requires complex motion and force, and the flexibility and strength of harmonic reducer is very applicable.

In general, the application of harmonic reducers is very wide. They play a key role.

ZLSH20-50-H, reduction ratio 50:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLSH20-100-H, reduction ratio 100:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLSH20-120-H, reduction ratio 120:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.
